無線充電吸波材
l 使用隔磁片可明顯增強磁通，提高充電效率 。
Enhancethe magnetic flux andimprove the charging efficiency whenmagnetic sheet be used.
使用隔磁片可防止磁感線外泄，降低電磁干擾。
Prevent leakage of magnetic field, reducing the level of EMI.
性能特點 Characteristics
高磁導率（500-1000）—提高充電效率 High permeability(500-1000)—Improve charging efficiency
超薄，最低至 30μ m—尺寸厚度可定制 Ultra thin, as low as 30μ m—The size can be produced according to customers
高飽和磁感應強度—有效縮小磁片體積，降低磁片厚度 High Bs—Reduce Magnetic sheet volume and thickness
低損耗—降低渦流損耗，提高充電效率 Lowcore loss—Reduce eddy current losses, improve charging efficiency
柔性材料—有效避免隔磁片碎裂漏磁，方便操作 Flexible material—Avoid magnetic flux leakage,convenient operation
性能指標 Performance Index
|
基本磁性參數Basic Magnetic property |
非晶隔磁片 Amorphous magnetic sheet |
納米晶隔磁片Nano crystalline Magnetic sheet |
錳鋅鐵氧體 MnZnferri te |
|||
|
磁感應強度 Magnetic induction B800/T |
1.56 |
1.25 |
0.54 |
|||
|

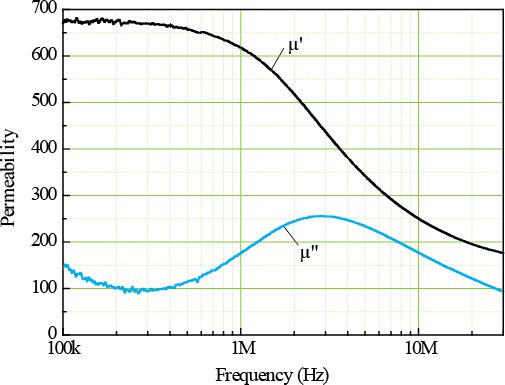

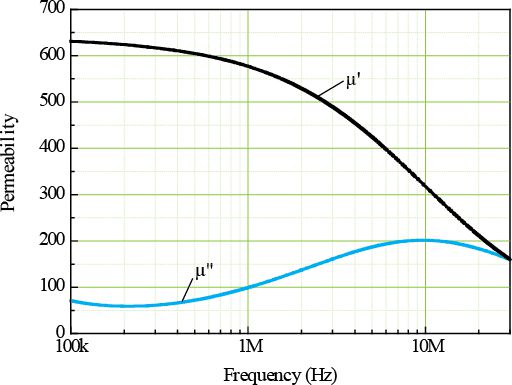

磁導率（@200KHZ） Permeability |
實部μ ′ |
500-1000 (可調) |
500-1000 (可調) |
≤150 |
||
|
虛部μ ″ |
30-60 (可調) |
20-50 (可調) |
3-5 |
|||
|
矯頑力 |
Hc/(A/m) |
|
|
＜4 |
≤1.6 |
250-600 |
|
電阻率 |
Resistivity δ |
（μ Ω ·cm） |
≥130 |
≥130 |
8 1.03*10 |
|
|
居裡溫度 Curie temperature/℃ |
400 |
570 |
400 |
|||
|
厚 度 | ||||||
