鐵基非晶塊鐵芯
鐵基非晶塊鐵芯
Iron-based Amorphous Blocked Cores

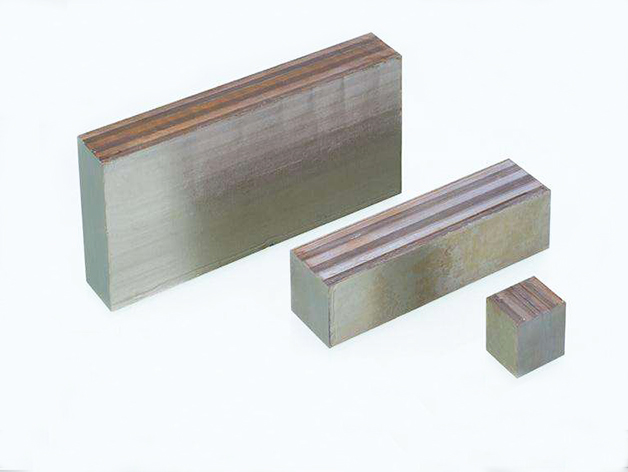

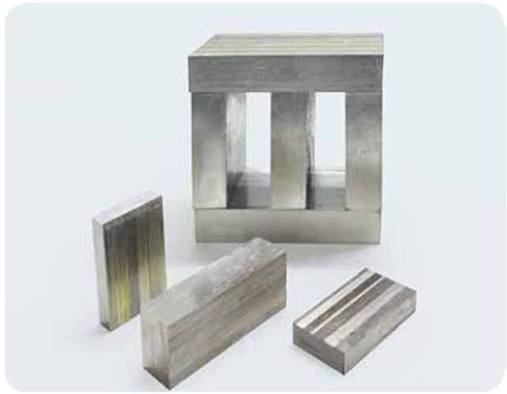

鐵基非晶塊鐵芯是把鐵基非晶合金薄帶疊合、固定後製成的塊狀磁芯。主要特點是磁芯損耗低、導磁率高，可用於變壓器與電感；實際是否適合，仍要看工作頻率、磁通密度及規格書的損耗曲線。
應用領域 Apolication
● 光伏逆變器用非晶電抗器鐵芯。
Reactor cores for PV inverter.
Reactor cores for PV inverter.
● 高頻大功率開關電源中的輸出濾波電抗器。
Filter reactor of high-frequency super switching power supply.
Filter reactor of high-frequency super switching power supply.
 |
 |
性能特點 Characteristics
● 光伏逆變器用非晶電抗器鐵芯。
Reactor cores for PV inverter.
Reactor cores for PV inverter.
● 高頻大功率開關電源中的輸出濾波電抗器。
Filter reactor of high-frequency super switching power supply.
Filter reactor of high-frequency super switching power supply.
● 光伏逆變器用非晶電抗器鐵芯。
Reactor cores for PV inverter.
Reactor cores for PV inverter.
● 高頻大功率開關電源中的輸出濾波電抗器。
Filter reactor of high-frequency super switching power supply.
Filter reactor of high-frequency super switching power supply.
● 光伏逆變器用非晶電抗器鐵芯。
Reactor cores for PV inverter.
Reactor cores for PV inverter.
● 高頻大功率開關電源中的輸出濾波電抗器。
Filter reactor of high-frequency super switching power supply.
Filter reactor of high-frequency super switching power supply.
非晶塊鐵芯產品規表 Amorphous Blocked Cores Specification sheet
 |

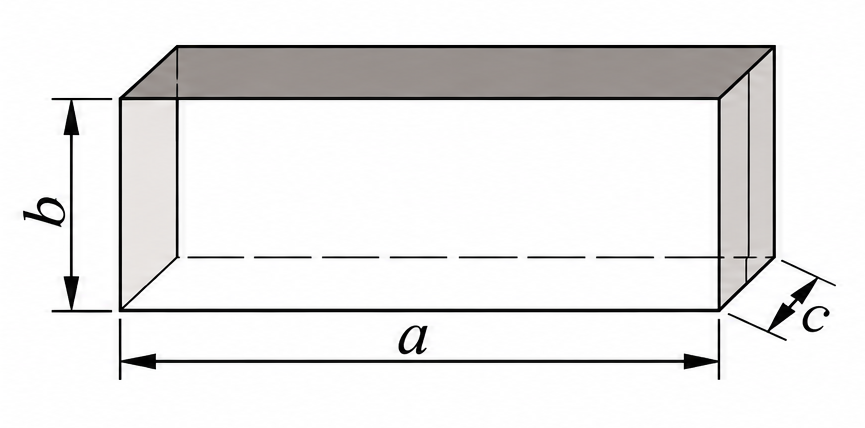

a=鐵芯長度; b=鐵芯寬度; c=堆芯疊高; Ac=鐵芯有效截面積 ; Mass=質量 a=core length; b=core width; c=build-up; Ac=section area; Mass=weight |
| 鐵芯型號 Item | a (mm) | ± (a) | b (mm) | ± (b) | c (mm) | ± (c) | Ac ref (mm²) | Mass ref (g) |
| CABC-090002000300 | 90.0 | 0.5 | 20.0 | 0.5 | 30.0 | 0.5 | 522 | 344 |
| CABC-082502500250 | 82.5 | 0.5 | 25.0 | 0.5 | 25.0 | 0.5 | 544 | 329 |
| CABC-127002500250 | 127.0 | 0.8 | 25.0 | 0.5 | 25.0 | 0.5 | 544 | 506 |
| CABC-130002500300 | 130.0 | 0.8 | 25.0 | 0.5 | 25.0 | 0.5 | 544 | 518 |
| CABC-160002500600 | 160.0 | 1.0 | 25.0 | 0.5 | 60.0 | 1.0 | 1298 | 1520 |
| CABC-085003000700 | 85.0 | 0.5 | 30.0 | 0.5 | 70.0 | 1.0 | 1817 | 1131 |
| CABC-090003000800 | 90.0 | 0.5 | 30.0 | 0.5 | 80.0 | 1.0 | 2076 | 1368 |
| CABC-090003000850 | 90.0 | 0.5 | 30.0 | 0.5 | 85.0 | 1.0 | 2206 | 1454 |
| CABC-100003000850 | 100.0 | 0.8 | 30.0 | 0.5 | 85.0 | 1.0 | 2206 | 1615 |
| CABC-110003000290 | 110.0 | 0.8 | 30.0 | 0.5 | 29.0 | 0.5 | 757 | 610 |
| CABC-110003000350 | 110.0 | 0.8 | 30.0 | 0.5 | 35.0 | 0.5 | 914 | 891 |
| CABC-140003000350 | 140.0 | 0.8 | 30.0 | 0.5 | 35.0 | 0.5 | 914 | 1743 |
| CABC-110003000850 | 110.0 | 0.8 | 30.0 | 0.5 | 85.0 | 1.0 | 2206 | 3139 |
| CABC-160003000850 | 160.0 | 1.0 | 30.0 | 0.5 | 85.0 | 1.0 | 2206 | 2889 |
| CABC-180003000700 | 180.0 | 1.0 | 30.0 | 0.5 | 70.0 | 1.0 | 1817 | 3643 |
| CABC-180003000800 | 180.0 | 1.0 | 30.0 | 0.5 | 80.0 | 1.0 | 2076 | 5016 |
| CABC-180003000850 | 180.0 | 1.0 | 30.0 | 0.5 | 85.0 | 1.0 | 2206 | 5132 |
| CABC-120003500850 | 120.0 | 0.8 | 35.0 | 0.5 | 85.0 | 1.0 | 2573 | 4832 |
| CABC-140003500357 | 140.0 | 0.8 | 35.0 | 0.5 | 32.7 | 0.5 | 1087 | 13435 |
| CABC-155003500950 | 155.0 | 1.0 | 35.0 | 0.5 | 95.0 | 1.0 | 2876 | 20311 |
| CABC-285003500850 | 285.0 | 1.0 | 35.0 | 0.5 | 85.0 | 1.0 | 2573 | 5371 |
| CABC-060004000130 | 60.0 | 0.5 | 40.0 | 0.5 | 13.0 | 0.5 | 452 | 199 |
| CABC-150004000600 | 150.0 | 1.0 | 40.0 | 0.5 | 60.0 | 1.0 | 2076 | 2281 |
| CABC-155004500397 | 155.0 | 1.0 | 45.0 | 0.5 | 39.7 | 0.5 | 1554 | 1764 |
| CABC-122005000700 | 122.0 | 0.8 | 50.0 | 0.5 | 70.0 | 1.0 | 3027 | 2705 |
| CABC-175005000650 | 175.0 | 1.0 | 50.0 | 0.5 | 65.0 | 1.0 | 2811 | 3603 |
| CABC-230005000700 | 230.0 | 1.0 | 40.0 | 0.5 | 70.0 | 1.0 | 3028 | 5100 |
| 注：可根據客戶要求，設計製作其他規格尺寸的非晶鐵芯，ref為參考值。 | ||||||||
| a＝鐵芯長度；b＝鐵芯寬度；c＝鐵芯疊高；Ac＝鐵芯有效截面積；Mass＝質量。 | ||||||||
| 來源：使用者提供之非晶塊鐵芯產品規表2(1).png；數值依原圖轉錄。 | ||||||||
